QUALITY STEEL MAKING
Over the last few years, increasing customer demands for improved product quality have forced steel producers to implement new and innovative metallurgical treatment into their modern steel making operations. CNE Systems offers Electric Ladle Furnace to meet these demands of steel makers.

The principal features of the CNE System’s ladle furnaces are its compact and sturdy construction, simple foundation and adapted electrical equipments. Apart from design of ladle furnace, the conceptions of associated equipment stroke components and how well they are matched, decides the effectiveness of ladle furnace plant.

Since vital components are designed and manufactured in-house, CNE Systems is in a unique position to provide this optimum match. Our long experience with electricity and knowledge of how to exploit it for industrial processes have created many special features which we offer for the secondary metallurgical processes.

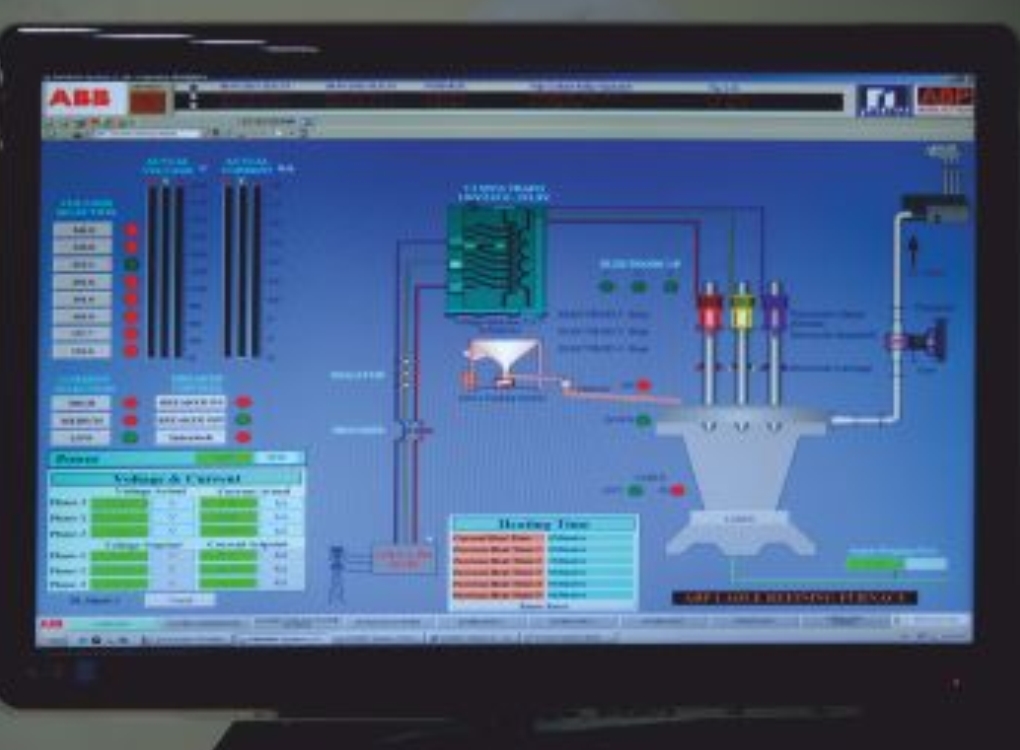

We manufacture and supply complete ladle furnace plants using ABB hardware and basic system software for Digital Electrode Control and automation

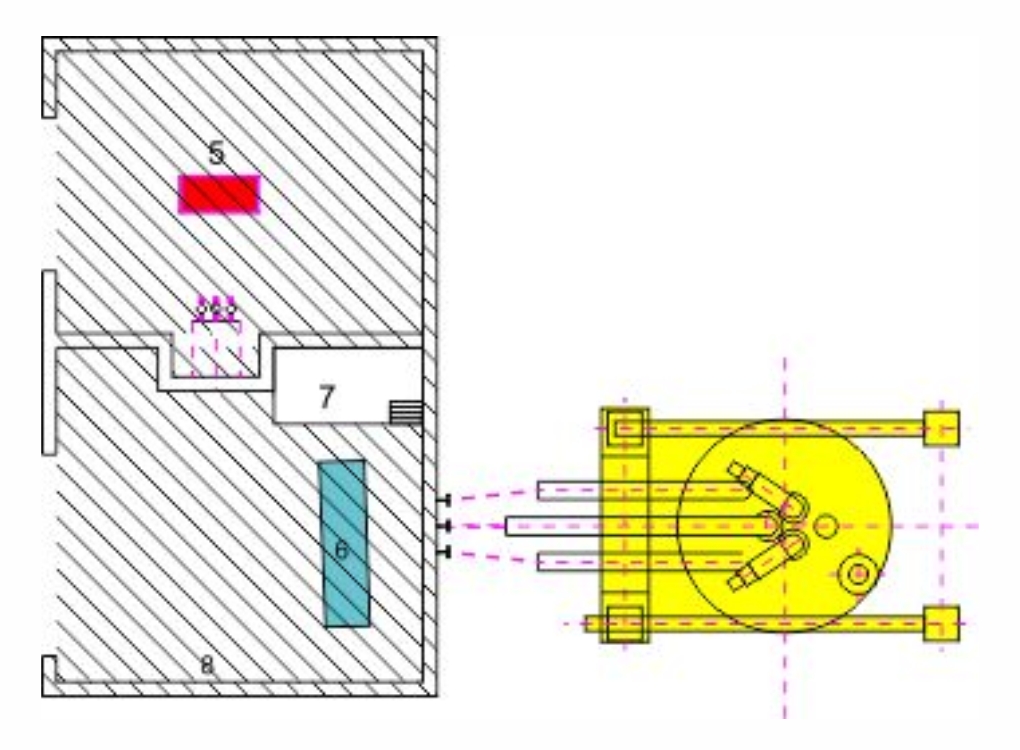

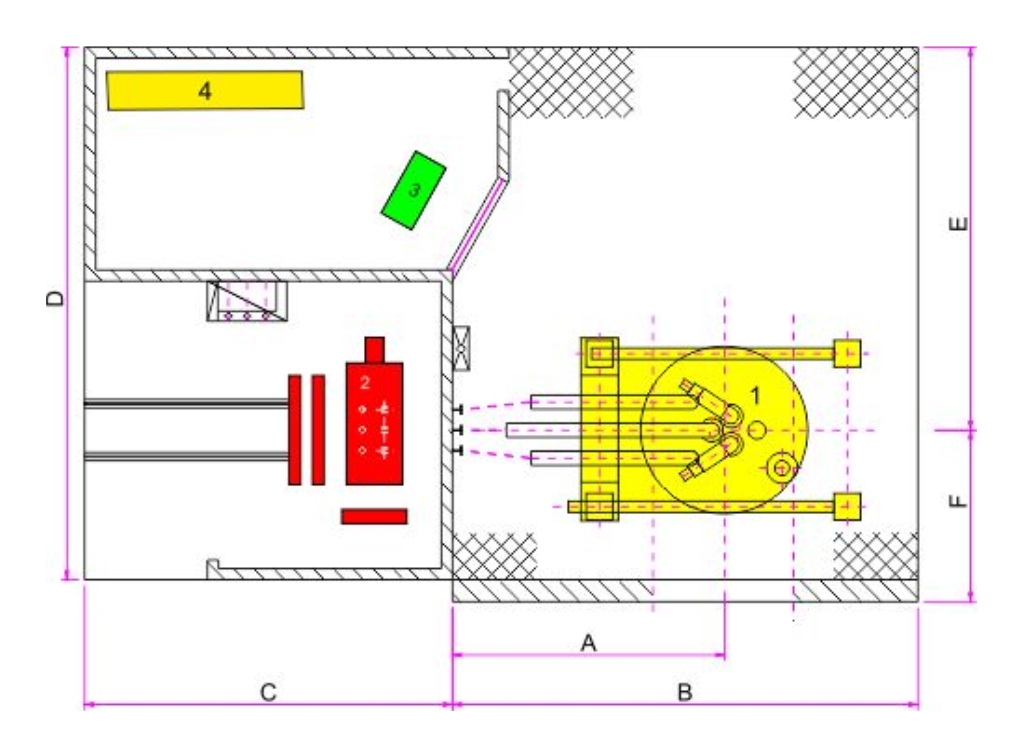

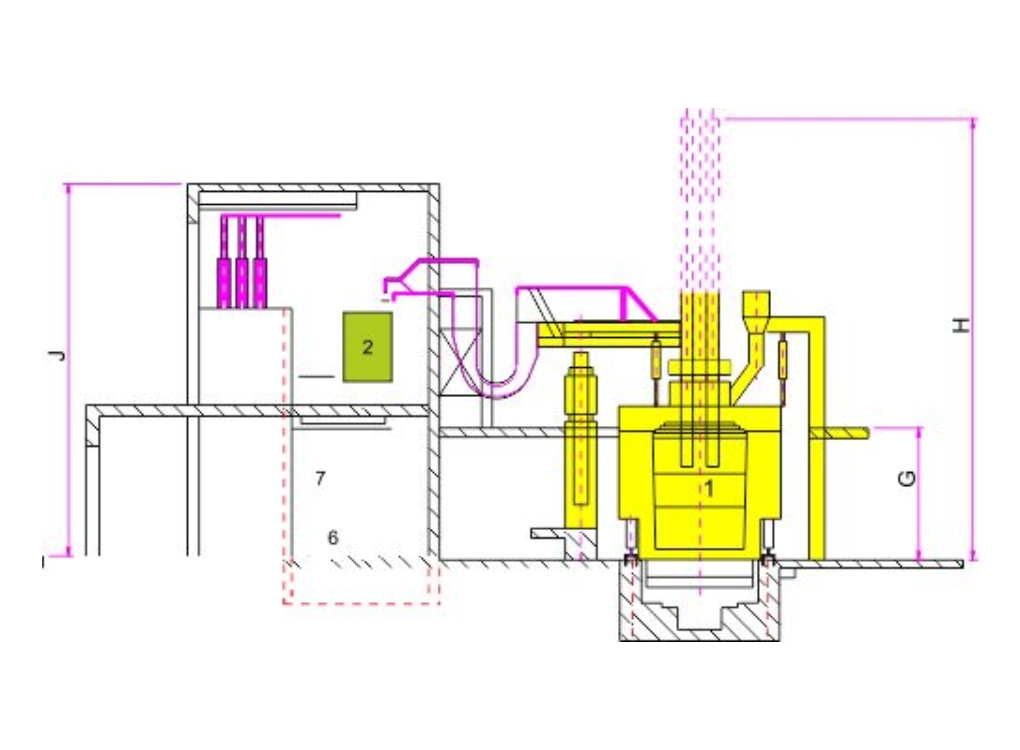

LAYOUT PROPOSAL -
LADLE FURNACE
Legend
1. Ladle Refining Furnace
2. Transformer
3. Control Desk
4. Control Panel / Regulation Panel
5. High Voltage Switchgear
6. Hydraulic Unit
7. Pressure Vessel
8. Motor Control Center
